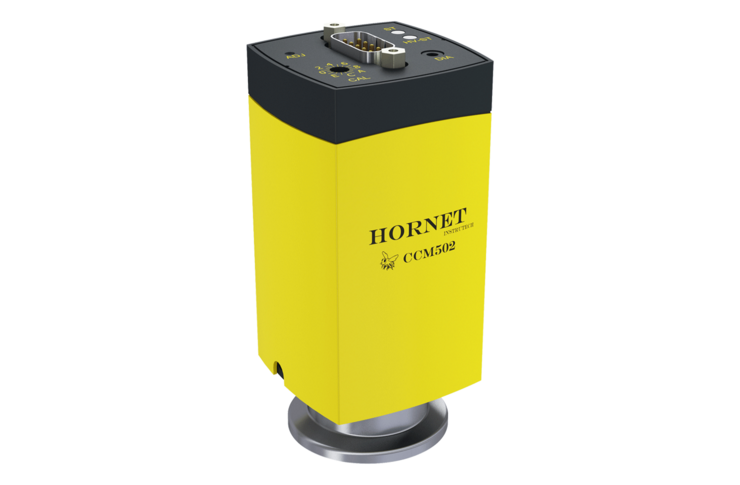

CCM502 Hornet™ Cold Cathode


CCM502 Hornet is InstruTech’s new cold cathode inverted magnetron ionization vacuum gauge module with a built-in controller. The pressure measurement range of the CCM502 is 7.60E-10 to 7.60E-03 Torr.

CCM502 is available with various fittings including NW25KF, NW40KF and 2 3/4 in. Conflat.


  • Wide measurement range of 7.60E-10 to 7.60E-03 Torr
  • Built-in controller
  • Ultra-low magnetic stray field
  • Compact small foot-print
  • Low maintenance replaceable insert
  • Reliable fast sensor activation
  • Log-linear analog output
  • CE and RoHS compliant
  • Standard warranty of 2 years
CCM502 Hornet™ Cold Cathode VDC power supply
