CC605/CC606 Cold Cathode - New

Overview

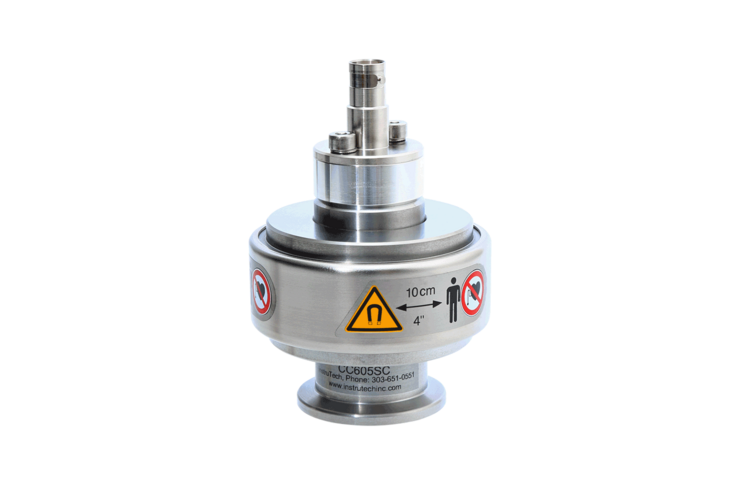

CC600 series are InstruTech's cold cathode inverted magnetron vacuum gauge sensors with no onboard controller.  The  InstruTech B-RAX 3500 controller is required to operate this gauge.

CC605 is offered with NW25KF, NW40KF and 2 3/4 in. Conflat fitting.  The UHV model CC606 is offered with NW40KF and 2 3/4 in. Conflat.

Features

  • CC605: Measurement range of 1.5E-9 to 3.75E-3 Torr
  • CC606: UHV Measurement range of 7.5E-11 to 3.75E-3 Torr
  • Cleanable sensor
  • Corrosion resistant ceramic feed through
  • CE and RoHS compliant
  • New product release - shipments start on March 2, 2018 (5-7 days lead time thereafter)
  • Standard warranty of 2 years

Compatible Controller:

B-RAX 3500
